FUNCTION

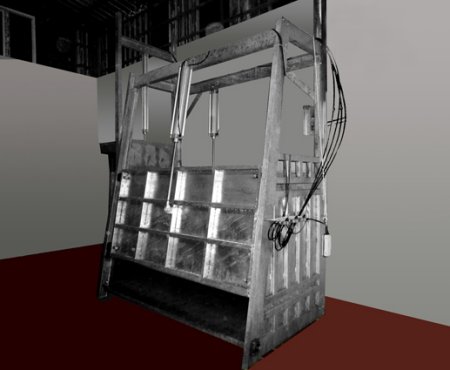

Lay down (Knock aside) cabins are used to enable the cutter to make safe slaughter of Cattles that arrive from the waiting paddock, without being subject to overstress.

Cabins called as slaughter cells in cattle slaughter houses, are the first equipments used at the beginning of slaughter at cattle slaughter spaces

There are steel plates mounted to floors at cattle slaughter halls, activated by one pneumatic piston at both entry gates, one at the front and one at the back.

During the slaughtering, animals taken into the cabin, lose their balances on the floor tilted with movement of plates and fall down with one foot left out fixed outside the cabin. The body is tied up by this foot to the bleeding hook hobble (watch chain) and the cattle is taken out of the cabin with the help of cattle lifting crane where the slaughter is completed.

TECHNICAL CHARACTERISTICS

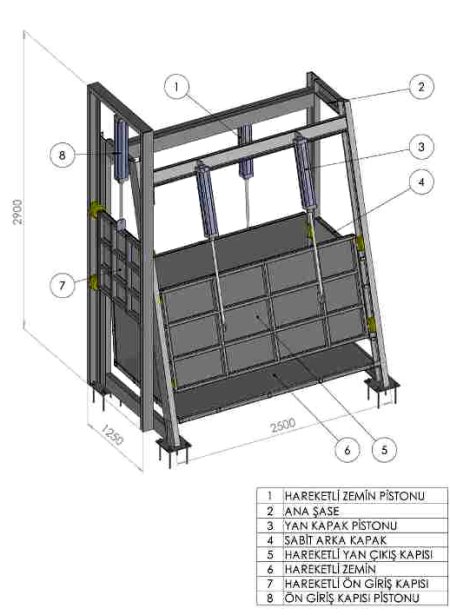

DIMENSIONS

Height : 2900 mm

Widht : 1250 mm

Length : 2500 mm

Material Specifications
Main Chassis	:	140 NPU Submerging Galvanized.
Mobile Covers	:	40 x 60 x 2.5 profile frame, 33 mm sheet plated, submerging galvanized, with wheels.
Cattle Entry Gate	:	63 x 1,000 Pistons, operates with 6 bars pressure.
Cattle Entry Gate	:	100 x 700 Pistons, operates with 6 bars pressure.
Bottom Platform	:	2 (two) 100 x 500 pistons operates with 6 bars pressure.
Control Panel	:	Controlled by 3 (three) pneumatic control arms.
